Pintail Softy
-------------
Nose width: 0" (17.5" to 19" @ 12" from nose)
Max width: 22" (measured @ 26" from nose)
Tail width: 0" (15" to 17" @ 12" from tail)
Length: 60"
Weight: approximately 6 to 7 pounds
Planshape: KB60-5, KB60-12, KB60-14
Tailshape: pintail
Core: PT Arcel-PF 310/512 @ 2.3pcf
Stringers: twin carbon fiber tubes
Deck skin: 3/16" 8pcf
Bottom rail skin: 3/16" 8pcf
Bottom skin: Dupont Surlyn
Rails: 45° top chine/7° bottom rail
Nose rocker: approx. 2" to 3"
Tail rocker: flat

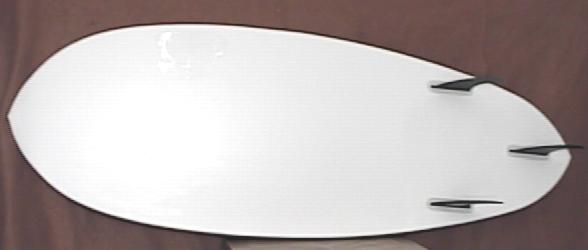

Tracking: twin or tri, boxed O'Fish'L fins
Leash plug: Wahoo!
Skin colors: white surlyn, white PE
|
|
These lightweight hybrid kneeboard designs are both stable and fast. The boxed skegs make tracking a dream; and during shaping, the box(es) can be placed further aft for increased tracking or pushed forward for increased maneuverability. They can be installed as a tri or twin fin setup. The standard flared nose makes catching waves a breeze and aids forward planing; the pintail template lessens tail drag for speed. The twin carbon fiber tube stringers are core embedded and make the boards *real* stiff, for down-the-line speed, yet still allow enough flex for bottom turn projection. These are super FUN *real* kneeboards! |
